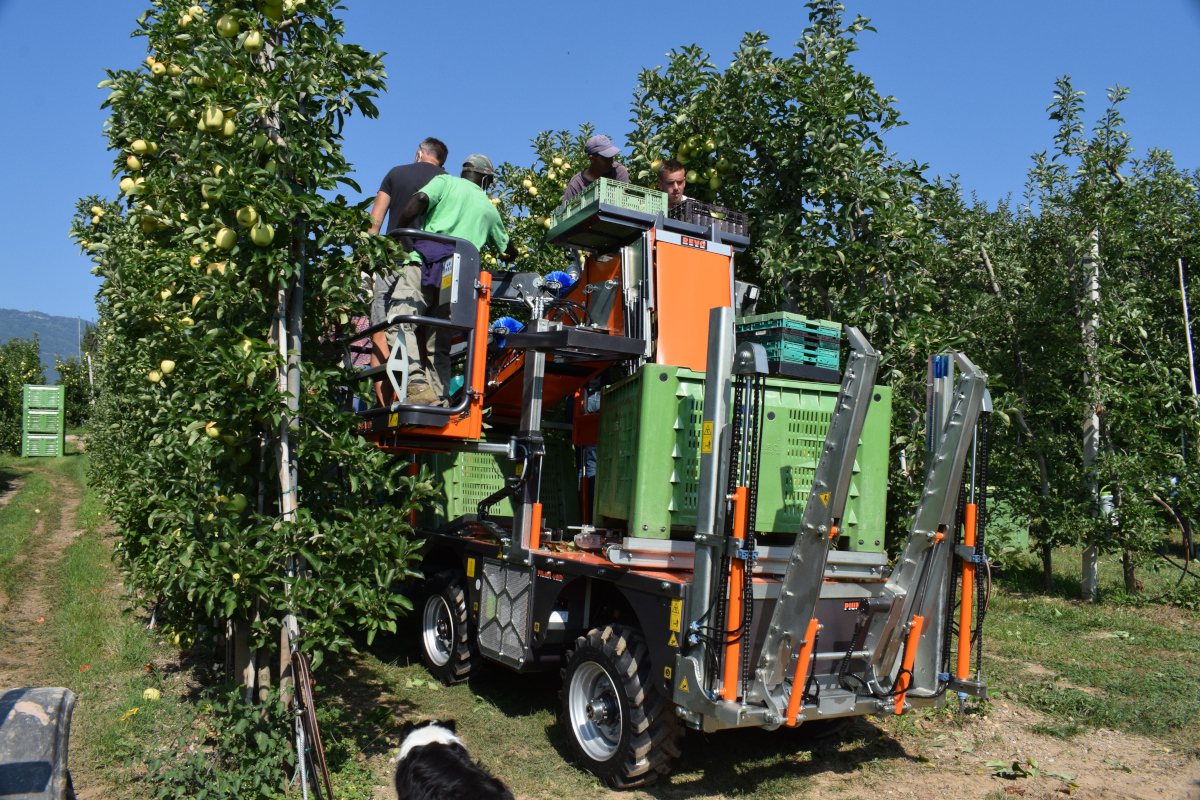

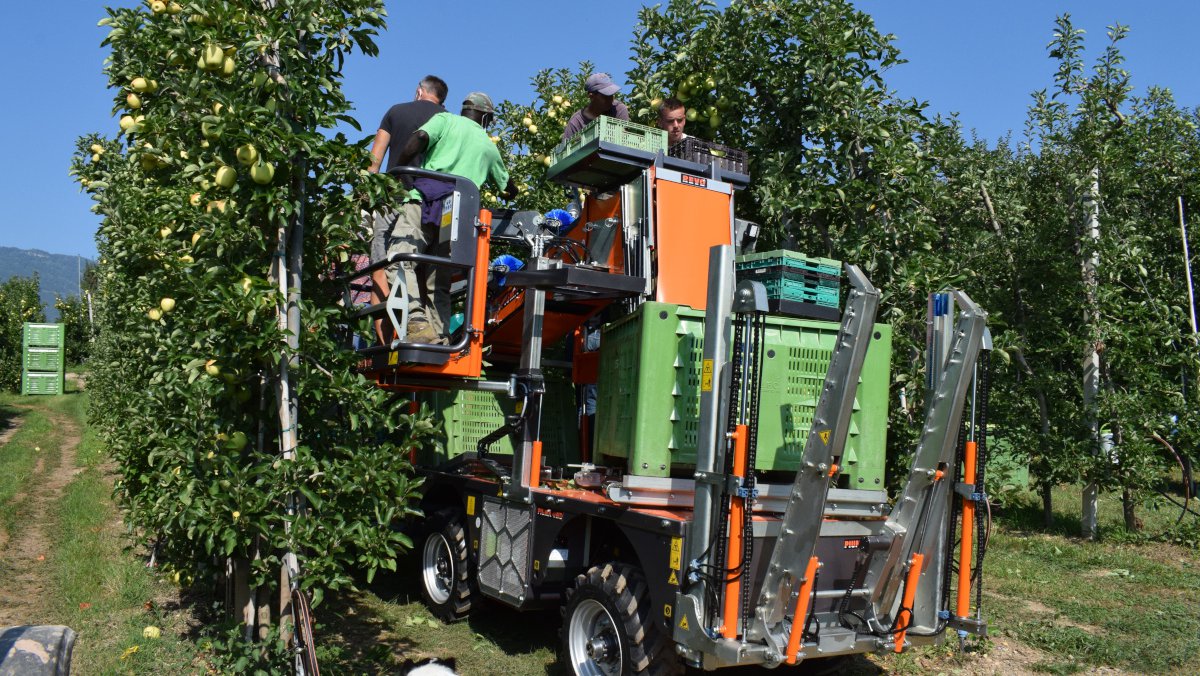

Small, compact, stable and quiet. Find out why PIUMA 4WD is considered a true revolution among fruit harvesters. Thanks to the exceptionally gentle handling of the fruit, the new Apple Transportation System ensures their quality all the way to the bin. PIUMA 4WD reduces picking time, labour costs and guarantees excellent results.

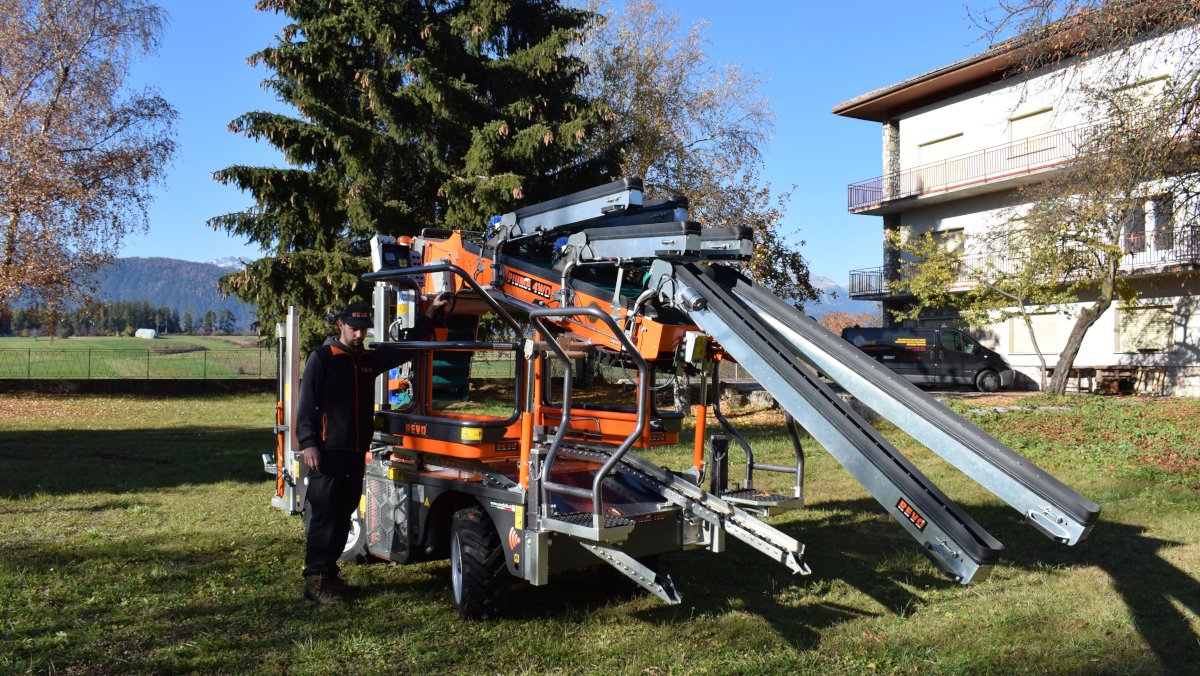

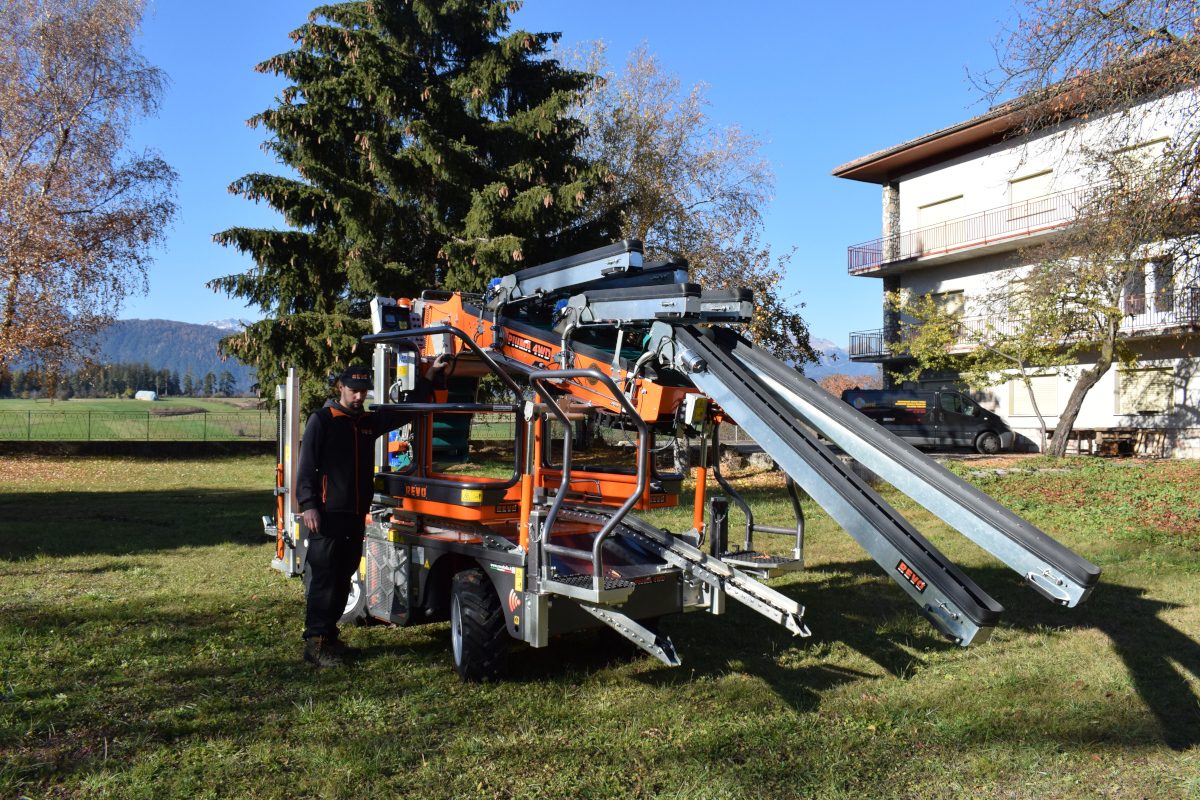

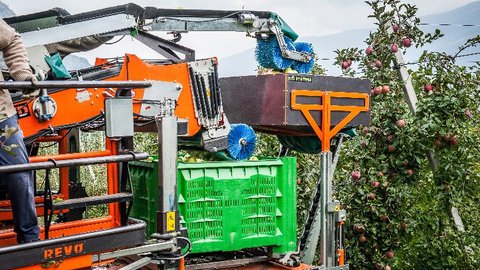

The conveyor belts placed on the extremities of the harvester convey fruit to the main belt, which collects and seamlessly conveys them into the bin.

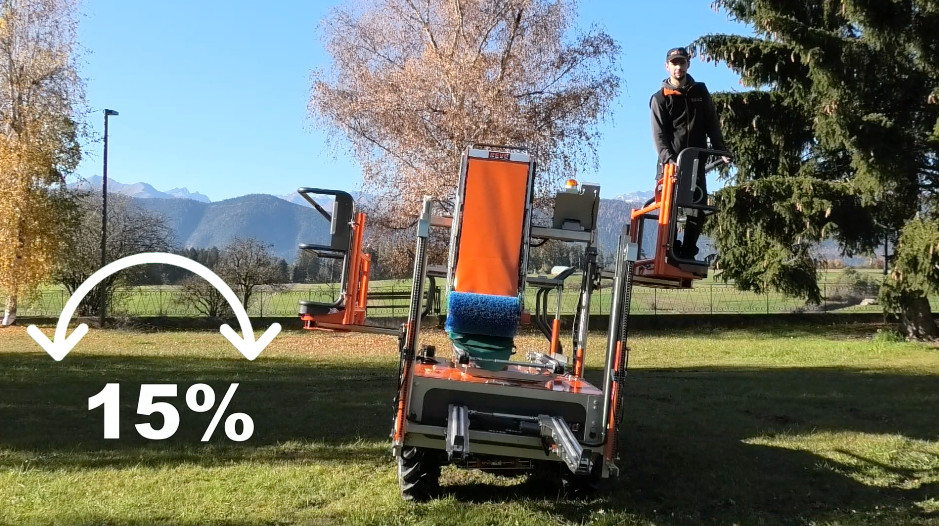

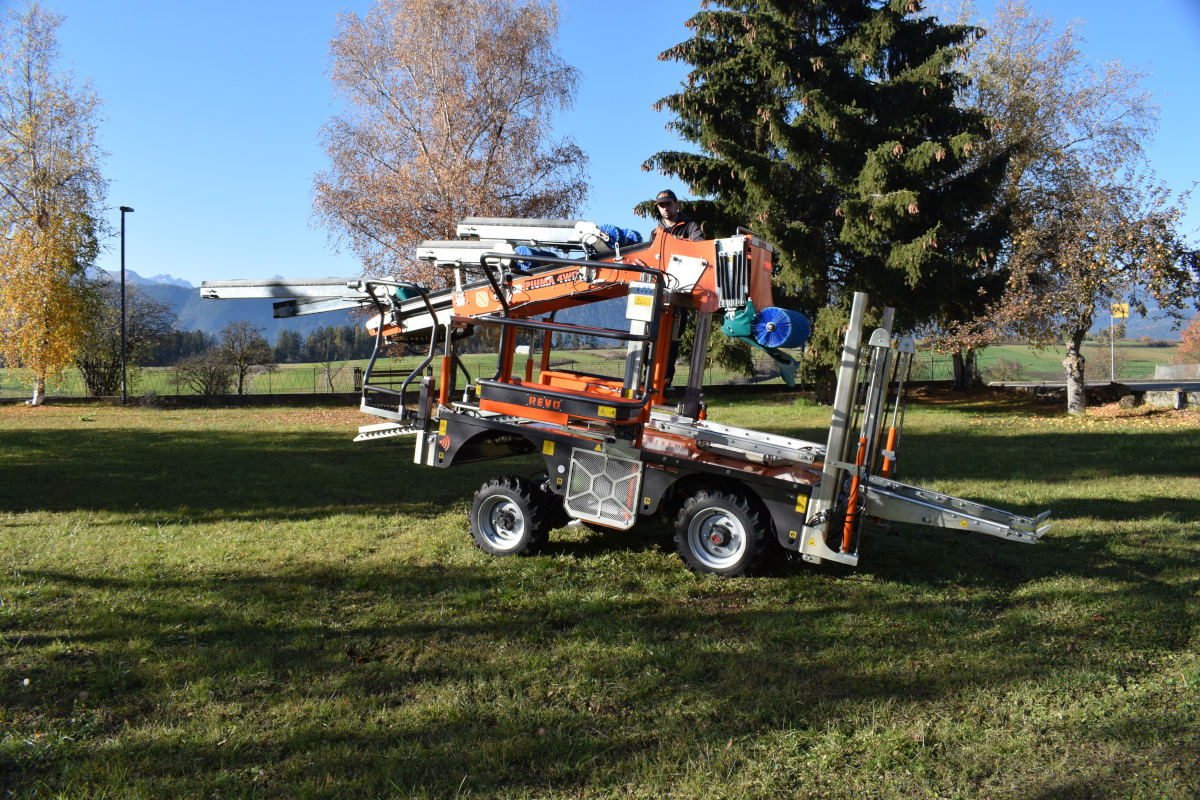

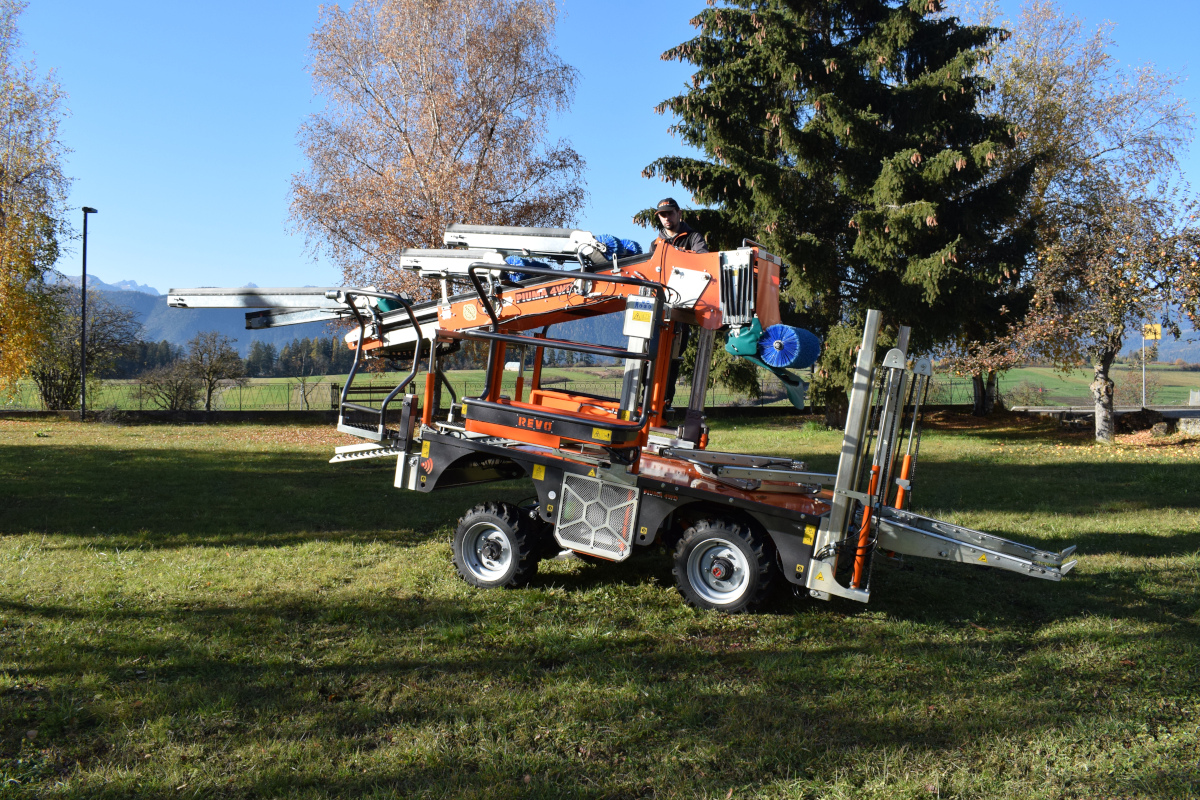

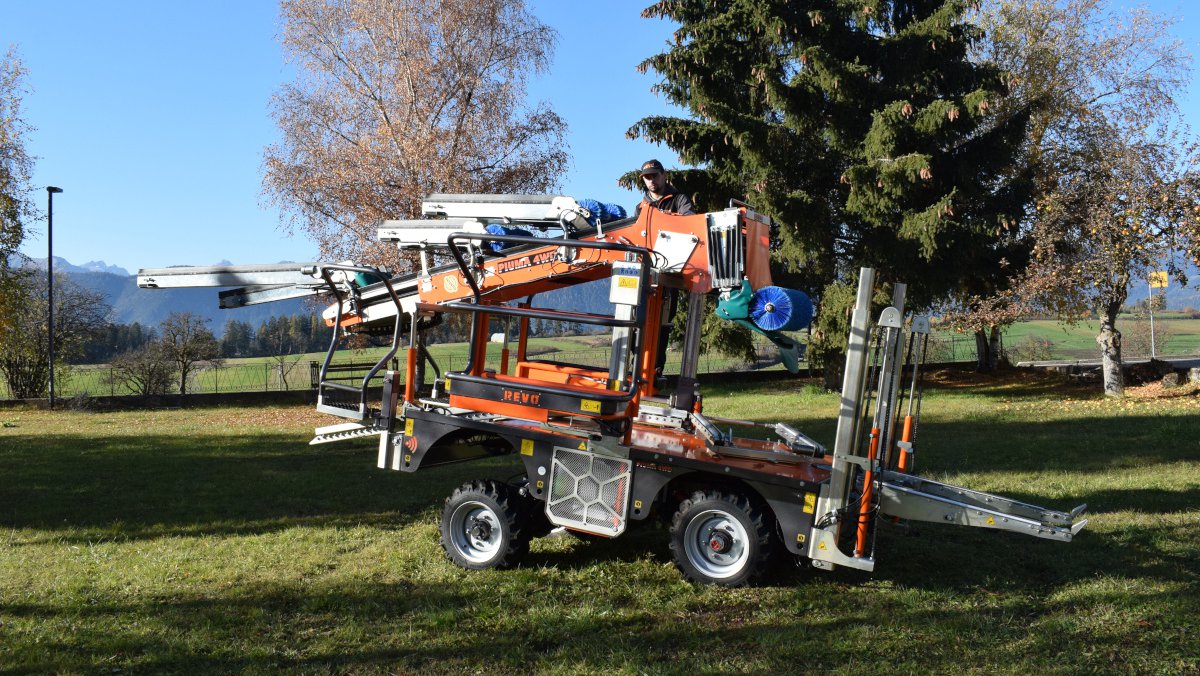

PIUMA 4WD moves the fruit faster, more gently and even more efficiently than any competitor in the market today. The fruit is gently placed into the bin with just one simple belt exchange. The automatic self-levelling system guarantees the same harvesting quality also in hilly terrains. Combined with our unique platform extension, PIUMA 4WD delivers the perfect harvesting tool. On slopy terrain the independent platforms allow the operators to work on both sides of the row, regardless of the difference in height.
After harvest it is easy to uninstall the harvesting module, transforming it into the perfect partner for all your orchard’s requirements, i.e. pruning, thinning, opening and closing hailnets etc.
Technical Specifications
Drive |
4 wheel drive |
Engine |
Yanmar 18.5 Kw (25 HP) Diesel |
Braking system |
Negative brake |
Min width with closed platforms |
1400 mm |
Max width with open platforms |
3030 mm |
Platform extension |
815 mm each side |
Working length |
5500 mm |
Transport length |
3900 mm |
Lateral platforms max height |
1800 mm |
Ground clearance |
230 mm |
Command system |
Electronic |
Leveling system |
Automatic |
Longitudinal |
10° / 17% |
Lateral |
8° / 13% |
Wheel system |
Independent front and rear wheel steering and crabbing |
Fruit handling |
Single conveyor system |
Weight |
2500 kg |
* Specifications and design subject to change without notice. |
- |
